PSA HomeGuard HG140AC 240V Photoelectric Smoke Alarm, 9V Battery Backup (6 Pack)

This pack contains six PSA HomeGuard HG140AC photoelectric smoke alarms. Each alarm runs on 240V mains with a replaceable 9V backup battery, and six is enough to cover the bedrooms, hallways and living areas of a typical house in one job. Each alarm has a wide 140mm base designed for replacement work, as it covers screw holes and paint marks left behind by older, smaller alarms.

The six units can be wired together so that when one detects smoke, they all sound. The HG140AC supports up to 48 interconnected alarms over a maximum of 150m, so larger homes can be covered by adding more units.

Key features

• Photoelectric sensing, which suits the slow, smouldering fires common in homes
• 240VAC 50Hz supply drawing 6mA, with a replaceable 9V backup battery for power outages
• 85dB alarm at 3m using the ISO 8201 sound pattern
• Large Test and Hush button, which silences nuisance alarms for about 10 minutes

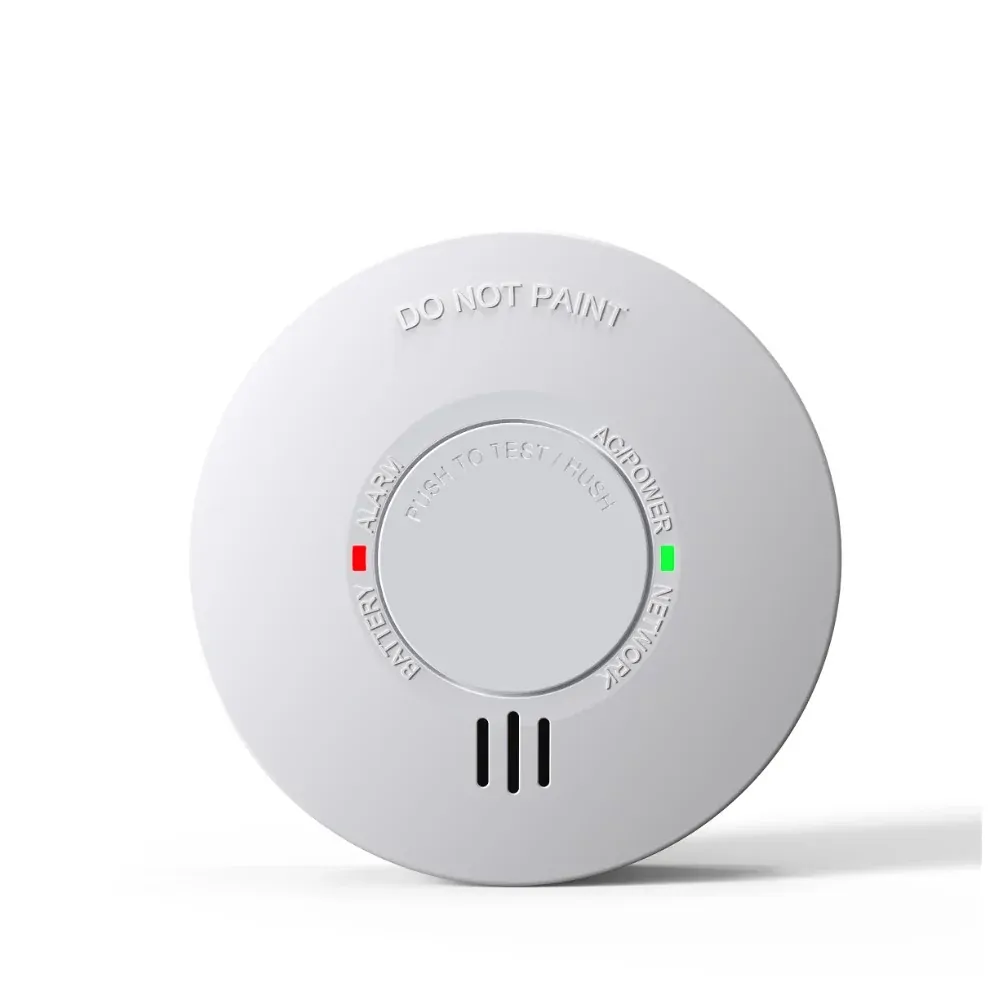

• Red and green LEDs to show alarm, hush and low-battery status
• Approved to AS 3786:2014 and backed by a 10-year warranty

Installation notes

• This is a 240V hard-wired alarm and must be installed by a licensed electrician.
• Wiring terminals: Active, Interconnect, Neutral and Loop.
• Operating range is 0 to 45°C and 5% to 95% humidity.
• Each alarm is 140mm in diameter and 38mm high.

What's included

• 6 x PSA HomeGuard HG140AC smoke alarms
