PSA Centrii Access Keypad with Wi-Fi and Power Supply

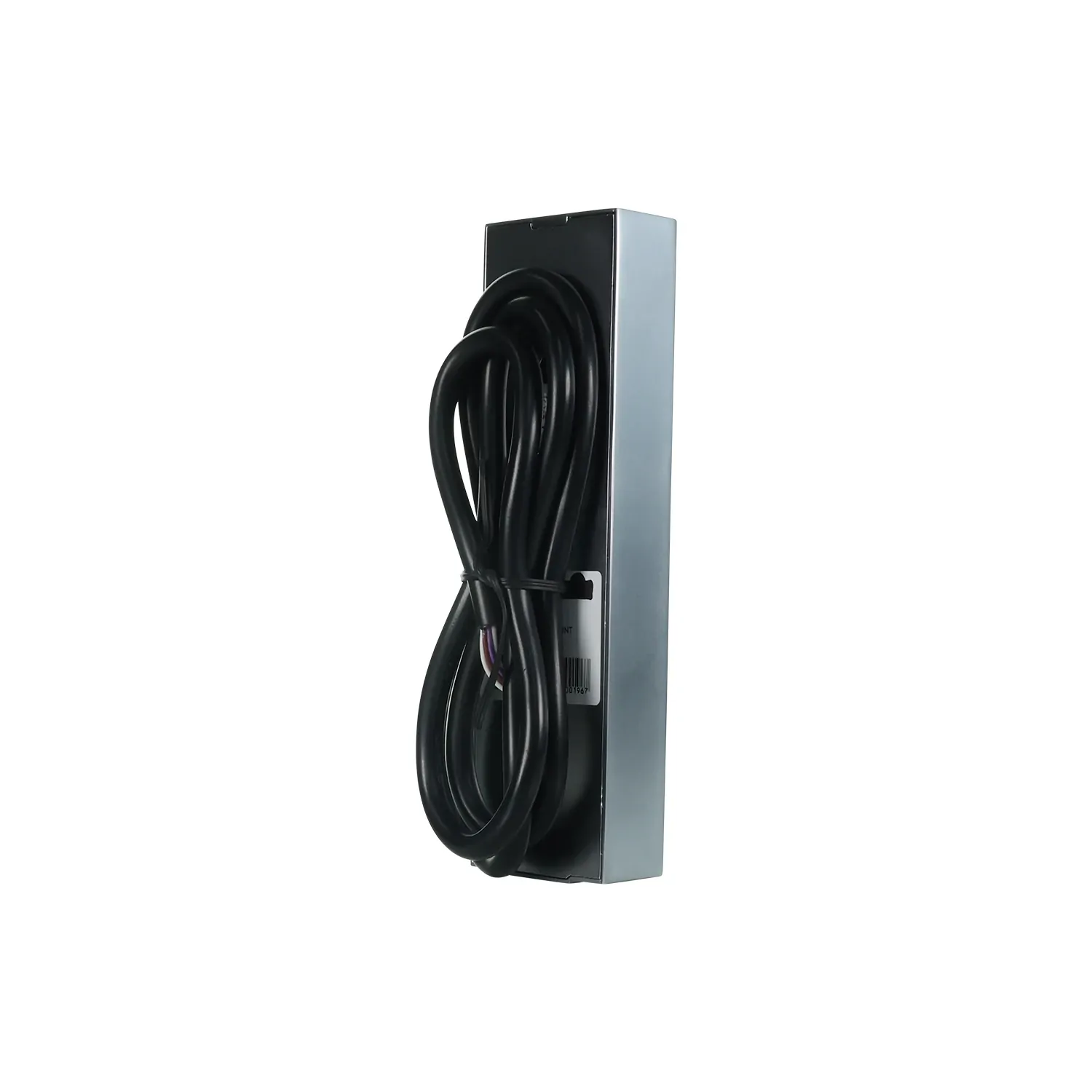

The PSA Centrii CEN1KPWFPS is an all-in-one access keypad for doors and gates that combines a reader, a controller and a lock relay in a single black zinc-alloy plate. Users can get in with a fingerprint, a PIN, a proximity card or their phone, and the unit ships with its own DC power supply, so there is no separate controller or supply to source.

It suits installers fitting out plant rooms, strata common areas, rental properties, workshops and small business staff entries, where keys get lost and access needs to change often. Every user is managed from the PSA Centrii app (iOS and Android), and an access log shows which credential opened the door and when.

Key features

• Holds up to 988 users: 100 fingerprints and 888 PIN or card users, plus 10 visitor and 2 panic users
• Reads both EM (125kHz) and Mifare (13.56MHz) cards at 2 to 6cm
• Remote unlocking, user changes and trigger alerts via the Centrii app, with per-user time restrictions
• One relay with NO, NC and COM contacts, rated for a 2A lock load, with door release adjustable from 0 to 99 seconds

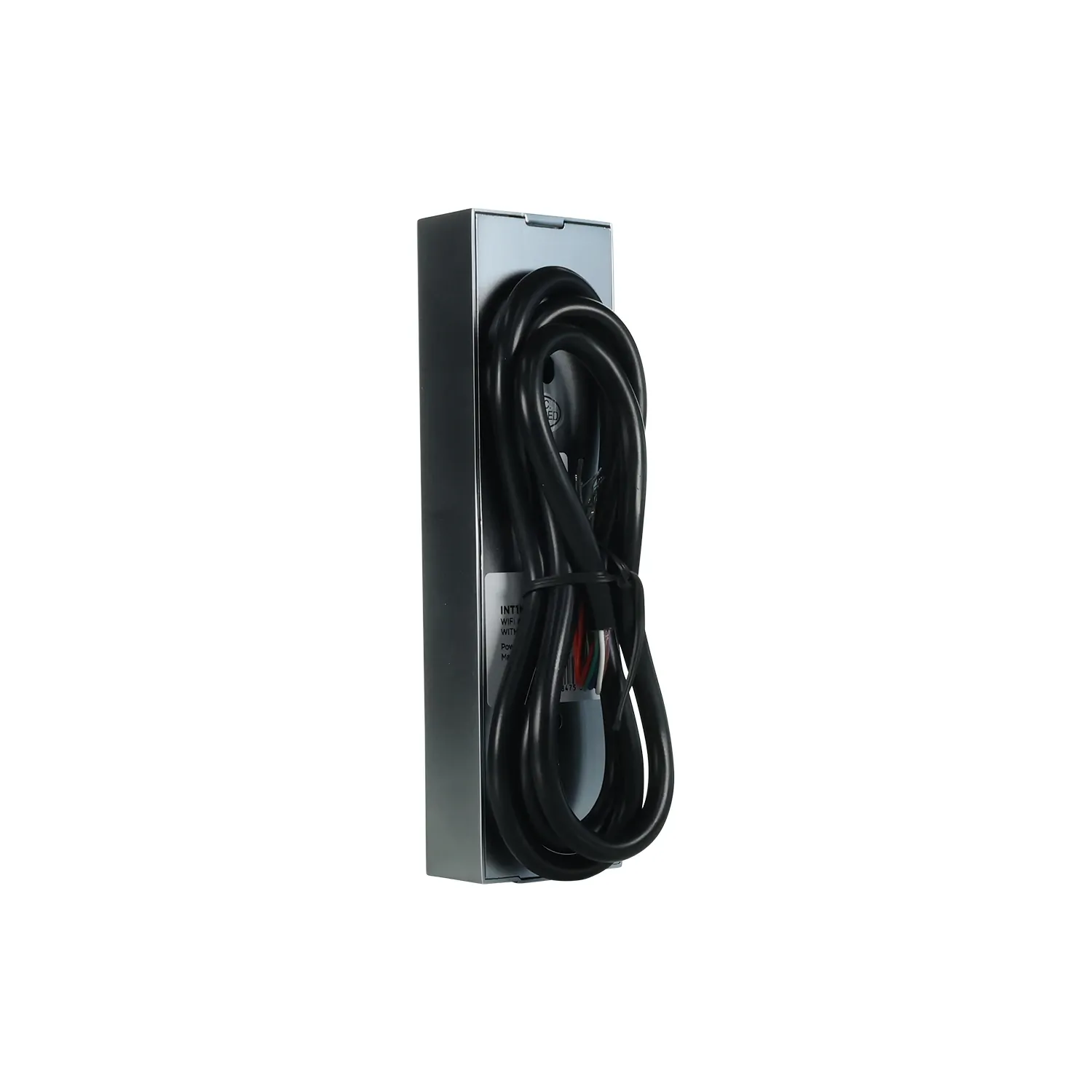

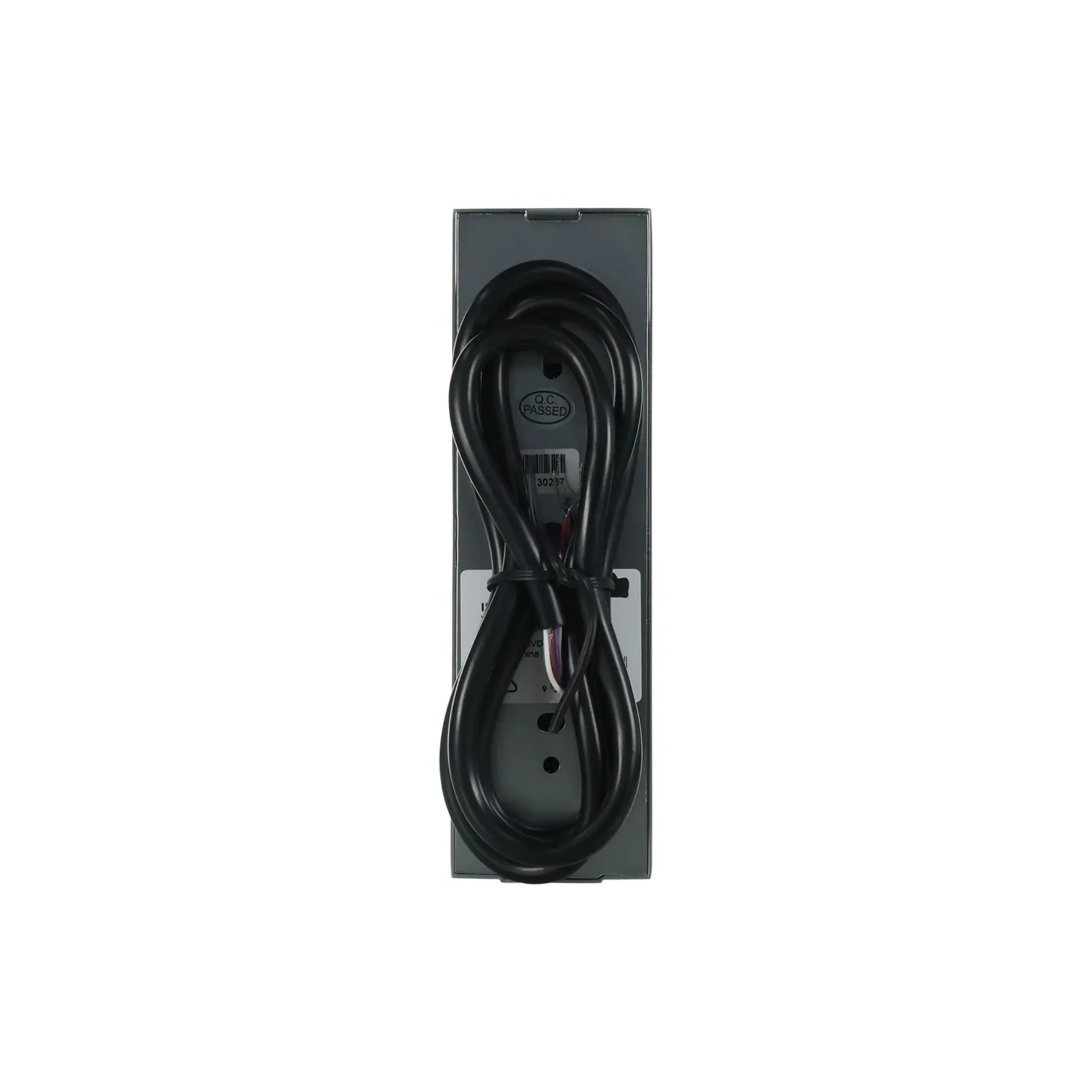

• Terminals for an exit button, alarm, door contact and 26 to 44 bit Wiegand in and out, so it can run standalone or feed an existing controller

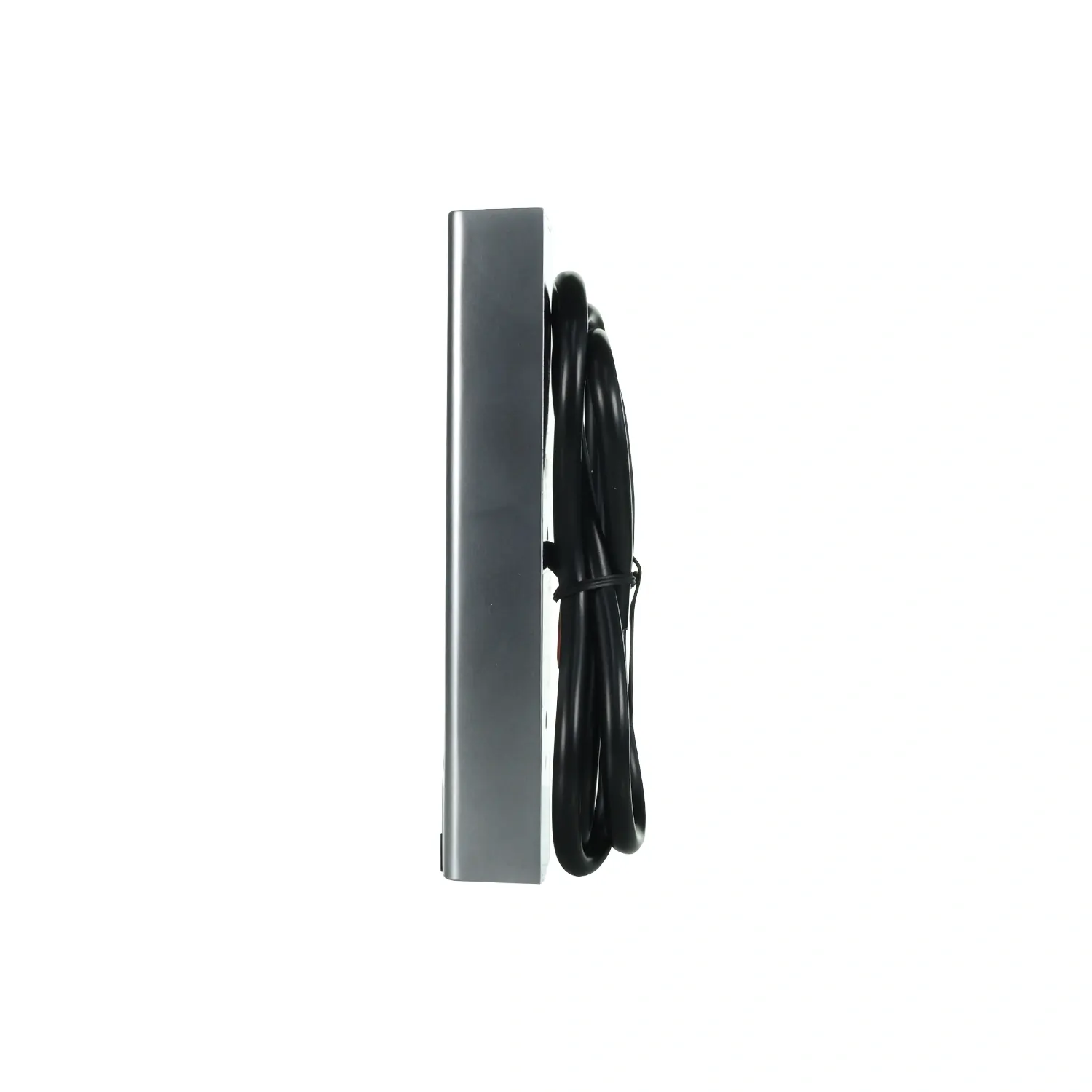

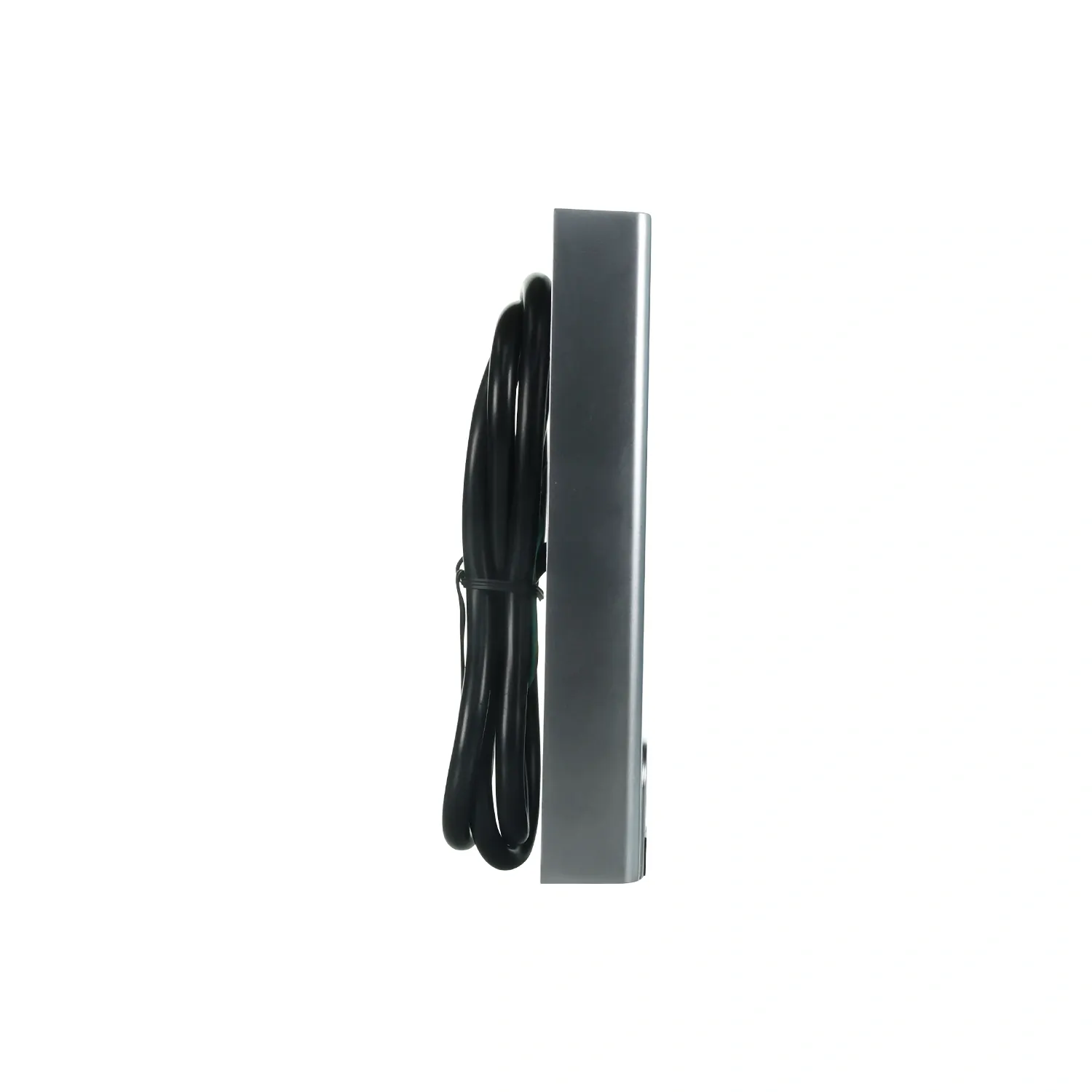

• IP66 vandal-resistant metal housing, 148 x 43.5 x 22mm

Installation notes

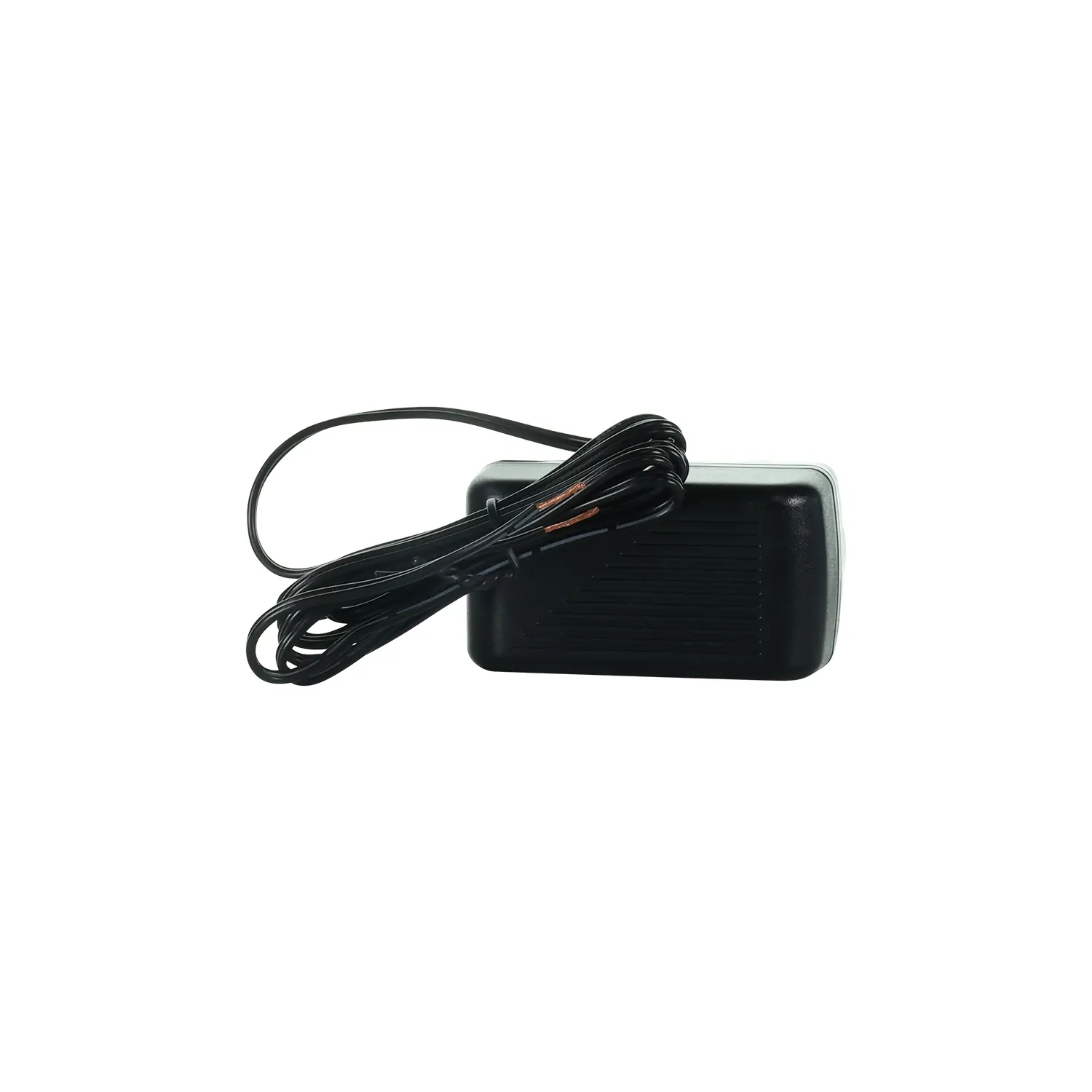

• Runs on 12 to 18V DC; the matching power supply is included
• Wi-Fi pairing works on 2.4GHz only, so make sure the site's access point broadcasts a 2.4GHz band
• Rated for ambient temperatures from -30 to 60 degrees C
• Locks that draw more than 2A need to be switched through separate hardware
